Create a 2D selective RF pulse for a spin echo sequence

Create a 2D selective RF pulse for a spin echo sequence

This demo defines an entire MRI sequence in MATLAB to selectively excite a volume. A slice through this excited volume is then imaged with a slice-selective refocusing pulse.

This example performs the following steps:

  1. Create a 2D RF pulse and corresponding k-space trajectory.
  2. Calculate the gradient waveforms from the trajectory
  3. Create readout gradient and phase encode strategy.
  4. Loop through phase encoding and generate sequence blocks.
  5. Write the sequence to an open file format suitable for execution on a scanner.

Contents

Sequence parameters

A new sequence object is created by calling the class constructor.

seq=mr.Sequence();

Sequence parameters are defined using standard MATLAB variables

fov=220e-3;                     % Field-of-view
Nx=256; Ny=256;                 % Imaging resolution
foe=200e-3;                     % Field of excitation
targetWidth=22.5e-3;            % Diameter of target excitation pattern
n=8;                            % Number of spiral turns
T=8e-3;                         % Pulse duration

Excitation k-space

A inward spiral trajectory for the excitation k-space is defined. The field-of-excitation and number of spiral turns defines the maximum k-space extent.

kMax=(2*n)/foe/2;               % Units of 1/m (not rad/m)
tk=0:seq.gradRasterTime:T-seq.gradRasterTime;
kx=kMax*(1-tk/T).*cos(2*pi*n*tk/T);
ky=kMax*(1-tk/T).*sin(2*pi*n*tk/T);

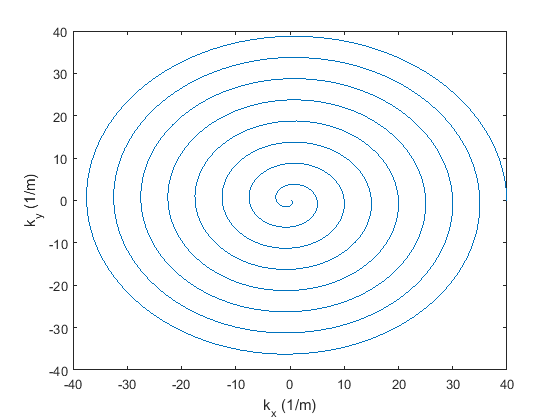

plot(kx,ky)
xlabel('k_x (1/m)'); ylabel('k_y (1/m)');

RF pulse definition

The RF pulse is defined closely following Pauly et al, JMR 1989; 81:43-56. The target excitation is a Gaussian defined by

$$f(x) = a \exp(-|x|^2/\sigma^2)$$

The equivalent in k-space is calculated with the Fourier transform

$$g(x) = b \exp(-\beta^2 |k|^2)$$

where the width is given by

$$\beta=\frac{2\pi K_{\rm max} \sigma}{2\sqrt{2}}$$

tr=0:seq.rfRasterTime:T-seq.rfRasterTime;
kxRf=interp1(tk,kx,tr,'linear','extrap');
kyRf=interp1(tk,ky,tr,'linear','extrap');
beta=2*pi*kMax*targetWidth/2/sqrt(2);  % Gaussian width in k-space
signal0 = exp(-beta.^2.*(1-tr/T).^2).*sqrt((2*pi*n*(1-tr/T)).^2+1);

Two RF waveforms are superimposed to excite a replica pattern offset 5cm in x and y directions. The shifted pattern is achieved with modulation by a complex exponential.

signal = signal0.*(1 + exp(-1j.*2*pi*5e-2*(kxRf + kyRf)));

plot(1e3*tr,real(signal),1e3*tr,imag(signal));
xlabel('t (ms)'); ylabel('Signal (Hz)');

Add gradient ramps to achieve the starting gradient value and moment (first k-space point) and likewise ramp the gradients to zero afterwards. The RF pulse is also padded with zeros during the ramp times.

[kx,ky,signal]=mr.addRamps({kx,ky},'rf',signal);

The gradient waveforms are calculated based from the k-space trajectory using the traj2grad function, which internally calculates the finite differences. The arbitrary gradient and RF events are then defined using functions in the mr toolbox.

gx = mr.traj2grad(kx);
gy = mr.traj2grad(ky);

rf = mr.makeArbitraryRf(signal,20*pi/180);
gxRf = mr.makeArbitraryGrad('x',gx);
gyRf = mr.makeArbitraryGrad('y',gy);

Define other gradients and ADC events

deltak=1/fov;
gx = mr.makeTrapezoid('x','FlatArea',Nx*deltak,'FlatTime',6.4e-3);
adc = mr.makeAdc(Nx,'Duration',gx.flatTime,'Delay',gx.riseTime);
gxPre = mr.makeTrapezoid('x','Area',-gx.area/2,'Duration',2e-3);
phaseAreas = ((0:Ny-1)-Ny/2)*deltak;

Refocusing pulse and spoiling gradients

The refocusing pulse selects a single slice through the excited volume.

[rf180, gz] = mr.makeBlockPulse(pi,'Duration',1e-3,'SliceThickness',5e-3);
gzSpoil = mr.makeTrapezoid('z','Area',gx.area,'Duration',2e-3);

Calculate timing

Echo time and repetition time are, TE=20ms, TR=500ms

delayTE1=20e-3/2 - mr.calcDuration(gzSpoil) - mr.calcDuration(rf180)/2;
delayTE2=delayTE1 - mr.calcDuration(gxPre) - mr.calcDuration(gx)/2;
delayTR=500e-3 - 20e-3 - mr.calcDuration(rf) - mr.calcDuration(gx)/2;

Define sequence blocks

Loop over phase encodes and define sequence blocks

for i=1:Ny
    seq.addBlock(rf,gxRf,gyRf);
    seq.addBlock(mr.makeDelay(delayTE1));
    seq.addBlock(gzSpoil);
    seq.addBlock(rf180,gz);
    seq.addBlock(gzSpoil);
    seq.addBlock(mr.makeDelay(delayTE2));
    gyPre = mr.makeTrapezoid('y','Area',phaseAreas(i),'Duration',2e-3);
    seq.addBlock(gxPre,gyPre);
    seq.addBlock(gx,adc);
    seq.addBlock(mr.makeDelay(delayTR));
end

seq.write('selectiveRf.seq');   % Write to pulseq file

The sequence can now be executed on scanner hardware. It can be easily visualised with the plot toolbox function.

seq.plot('TimeRange',[0 35e-3])

Experimental data is reconstructed with a 2D FFT to produce an image showing the desired excitation pattern.

figure
imshow('../doc/images/rf2d.png')
